Cummins C1100D5
- Standby:
- 1110 kVA
- Voltage:
- 380‑440 V
- Prime:
- 1000 kVA
- Frequency:
- 50Hz
- Engine:
- Cummins QST30‑G4
- Amps Per Phase:
- 1602
- Alternator:
- Stamford S6F
- Control Panel:
- Cummins PowerCommand 3.3

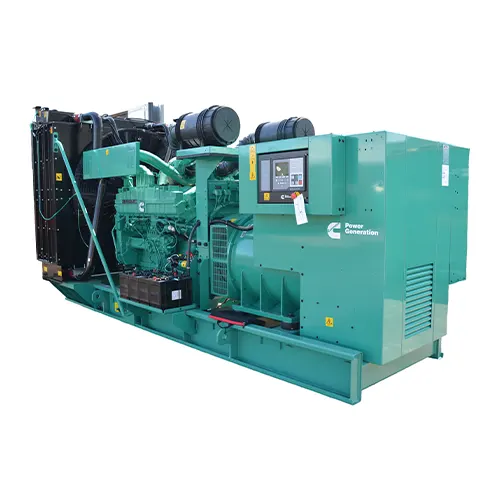

The Cummins C1100D5 is a high-capacity open diesel generator delivering 1110 kVA standby and 1000 kVA prime power at 50 Hz. It is powered by a Cummins QST30‑G4 V12 turbocharged, charge-air-cooled engine, coupled with a Stamford S6F alternator. The PowerCommand 3.3 control panel provides automatic start/stop, full diagnostics, and protection.
Engine Specs
Engine Model
QST30‑G4 (50° V12, turbocharged and charge-air-cooled)
Rated Speed
1 500 rpm
Bore × Stroke
140 × 165 mm
Lube Oil Capacity
135 L
Overspeed Limit
1 725 rpm ±50
Governor Type
Electronic
Starting Voltage
24 V DC
Gross Engine Power (Standby)
970 kWm
Gross Engine Power (Prime)
880 kWm
Regenerative Power
58 kW
Emission Level
Unregulated
Alternator Specs
Model
Stamford S6F
Insulation Class
H
IP Rating
IP23
Control Panel Specs
Controller Model
PowerCommand 3.3
AMPS per Phase
1602 A
Fuel & Consumption
Standby @¼ load
58 L/hr
Standby @½ load
113 L/hr
Standby @¾ load
167 L/hr
Standby @full load
224 L/hr
Prime @¼ load
54 L/hr
Prime @½ load
102 L/hr
Prime @¾ load
151 L/hr
Prime @full load
202 L/hr
Max Fuel Flow
550 L/hr
Cooling & Air
Combustion Air Flow (Standby)
60.3 m³/min
Combustion Air Flow (Prime)
56.7 m³/min
Coolant Capacity (with radiator)
192 L
Ambient Rating
40 °C
Fan Load
18 kWm
Exhaust
Exhaust Gas Flow (Standby)
179 m³/min
Exhaust Gas Flow (Prime)
165 m³/min
Exhaust Gas Temperature (Standby)
575 °C
Exhaust Gas Temperature (Prime)
565 °C
Max Back Pressure
6.8 kPa
Dimensions & Weight
Open Set (L×W×H)
4191 × 1560 × 2414 mm
Dry Weight (Open)
8705 kg
Standards & Accessories
Voltage Regulation
±1 % electronic
THD (Total Harmonic Distortion)
≤2 %
Gov. Type
Electronic
ATC & Battery Charger
Optional
