Cummins C110D5Q
- Standby:
- 110 kVA
- Voltage:
- 400 V
- Prime:
- 100 kVA
- Frequency:
- 50Hz
- Engine:
- Cummins 6BTA5.9‑G5
- Amps Per Phase:
- 158.4
- Alternator:
- Stamford UC274C
- Control Panel:
- Cummins PowerStart 0600

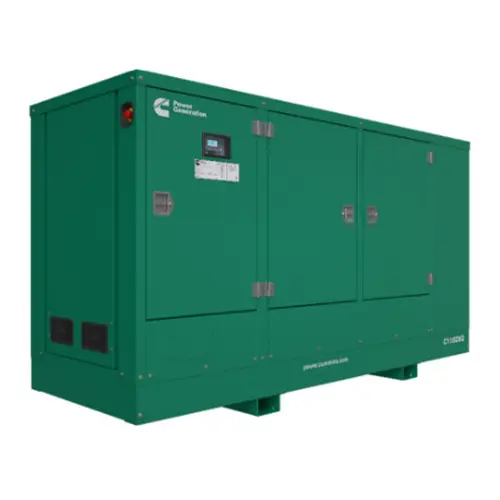

The Cummins C110D5Q is a 110 kVA (88 kW) standby / 100 kVA (80 kW) 50Hz sound‑attenuated generator from the Q‑Range. Powered by the 6BTA5.9‑G5 turbocharged and after‑cooled engine running at 1500 rpm, it ensures reliable performance with efficient fuel consumption. The Stamford UC274C alternator delivers steady three‑phase output with ± 1 % voltage regulation. Controlled via the PowerStart 0600 microprocessor panel for automatic start, diagnostics, fault protection, and metering.
Includes a CE/UKCA‑approved canopy, with options like battery charger, coolant heater, extended fuel tank and ATS. emission level is Unregulated for this Q‑Range model.
Engine Specs
Engine Model
6BTA5.9‑G5 (inline‑6, turbocharged & after‑cooled)
Rated Speed
1500 rpm
Bore × Stroke
102 × 120 mm
Compression Ratio
17.6 : 1
Lube Oil Capacity
≈ 16.4 L
Overspeed Limit
1800 rpm
Governor Type
Electronic
Alternator Specs
Model
Stamford UC274C
Insulation Class
H
Voltage Regulation
± 1 %
Frequency Regulation
Droop control, isochronous
Control Panel Specs
Controller Model
PowerStart 0600 (PS0600)
Display
LCD + LED indicators
Functions
Auto/manual start, AMF, diagnostics, metering
Starting Voltage
12 V DC
Fuel & Consumption
Fuel Tank Capacity
400 L (base tank)
Fuel Consumption @ Full Load
≈ 27.2 L/hr (standby), ≈ 24.7 L/hr (prime)
Cooling & Air
Coolant Capacity
≈ 19.75 L
Combustion Air Flow
≈ 7.86 m³/min (standby), ≈ 7.2 m³/min (prime)
Ambient Rating
54 °C
Exhaust
Exhaust Temp
≈ 540 °C (standby), ≈ 533 °C (prime)
Exhaust Flow
≈ 21.4 m³/min (standby), ≈ 19.5 m³/min (prime)
Max Back Pressure
≈ 10.5 kPa
Dimensions & Weight
Enclosed Set (L×W×H)
3166 × 1100 × 1981 mm
Dry Weight (Enclosed)
1,898 kg
Standards & Accessories
Certifications
CE / UKCA
Optional Features
Battery charger, coolant heater, extended tank, ATS
Warranty
2 years or 500 h standby / 1 year unlimited prime
