Cummins C1400D5
- Standby:
- 1400 kVA
- Voltage:
- 380‑440 V
- Prime:
- 1250 kVA
- Frequency:
- 50Hz
- Engine:
- Cummins KTA50‑G3
- Amps Per Phase:
- 2016
- Alternator:
- Stamford PI734B
- Control Panel:
- Cummins PowerCommand 3.3

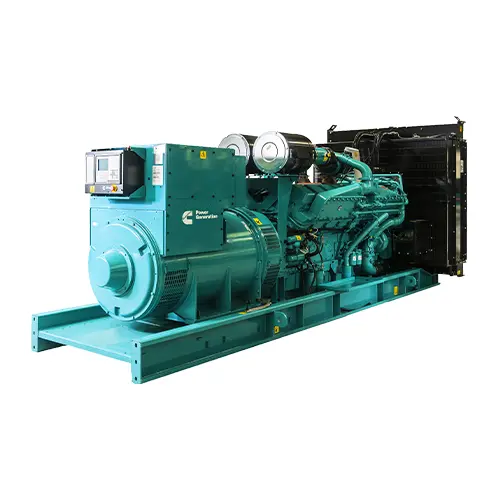

The Cummins C1400D5 is a high-capacity open diesel generator delivering 1400 kVA standby and 1250 kVA prime power at 50 Hz. Equipped with a rugged Cummins KTA50‑G3 V16 turbocharged, after-cooled engine and Stamford PI734B alternator. With PowerCommand 3.3 control panel, it provides robust diagnostics, automatic operation, and reliable protection.
Engine Specs
Engine Model
KTA50‑G3 (60° V16, turbocharged and after-cooled)
Rated Speed
1 500 rpm
Bore × Stroke
159 × 159 mm
Lube Oil Capacity
152 L
Overspeed Limit
1 725 rpm ±50
Governor Type
Electronic
Starting Voltage
24 V DC
Gross Engine Power (Standby)
1 227 kWm
Gross Engine Power (Prime)
1 097 kWm
Regenerative Power
116 kW
Alternator Specs
Model
Stamford PI734B
Control Panel Specs
Controller Model
PowerCommand 3.3
AMPS per Phase
2016 A
Fuel & Consumption
Max Fuel Flow
625 L/hr
Standby Consumption @¼ / ½ / ¾ / full load
91 / 158 / 224 / 291 L/hr
Prime Consumption @¼ / ½ / ¾ / full load
84 / 144 / 203 / 263 L/hr
Cooling & Air
Combustion Air Flow (Standby)
104.8 m³/min
Combustion Air Flow (Prime)
96.3 m³/min
Coolant Capacity (with radiator)
424 L
Ambient Design Temperature
40 °C
Fan Load
46 kWm
Exhaust
Exhaust Gas Flow (Standby)
240.7 m³/min
Exhaust Gas Flow (Prime)
223.6 m³/min
Exhaust Gas Temperature (Standby)
525 °C
Exhaust Gas Temperature (Prime)
520 °C
Max Back Pressure
6.7 kPa
Dimensions & Weight
Open Set (L×W×H)
5105 × 2000 × 2238 mm
Dry Weight (Open)
9190 kg
Wet Weight (Open)
9613 kg
Standards & Accessories
Voltage Regulation
±1 % electronic
THD (Total Harmonic Distortion)
≤2 %
Optional Acoustic Enclosure
Available
