Cummins C1675D5A
- Standby:
- 1675 kVA
- Voltage:
- 380‑440 V
- Prime:
- 1500 kVA
- Frequency:
- 50Hz
- Engine:
- Cummins KTA50 GS8
- Amps Per Phase:
- 2418
- Alternator:
- Stamford PI734D
- Control Panel:
- Cummins PowerCommand 3.3

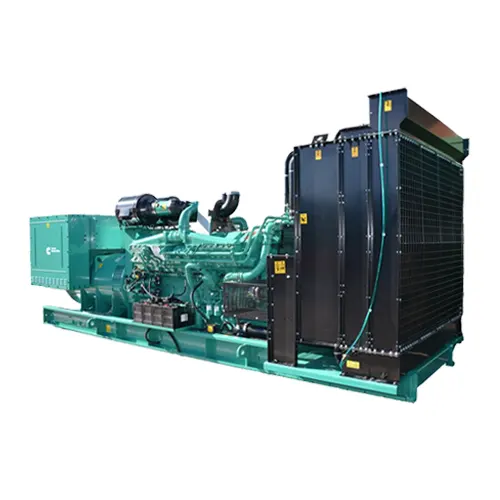

The Cummins C1675D5A is an industrial-grade open diesel generator delivering 1675 kVA standby and 1500 kVA prime output at 50 Hz. It’s powered by the robust KTA50‑GS8 V16 turbocharged, after-cooled engine, mated to a Stamford PI734D alternator. Featuring the PowerCommand 3.3 control system for automatic operation, diagnostics, and protection.
Engine Specs
Engine Model
KTA50‑GS8 (60° V16, turbocharged and low‑temperature after‑cooled)
Gross Engine Power
1429 kWm (Standby) / 1287 kWm (Prime)
Rated Speed
1 500 rpm
Bore × Stroke
159 × 159 mm
Lube Oil Capacity
178 L
Overspeed Limit
1 725 rpm ±50
Governor Type
Electronic
Starting Voltage
24 V DC
Compression Ratio
14.9 : 1
Regenerative Power
116 kW
Emission Level
Unregulated
Alternator Specs
Model
Stamford PI734D
Control Panel Specs
Controller Model
PowerCommand 3.3
Fuel & Consumption
Standby Load @¼/½/¾/full
92 / 165 / 253 / 345 L/hr
Prime Load @¼/½/¾/full
88 / 167 / 238 / 309 L/hr
Max Fuel Flow
570 L/hr
Cooling & Air
Combustion Air Flow (Standby/Prime)
99.3 / 94.9 m³/min
Ambient Design Temperature
40 °C
Fan Load
30 kWm
Coolant Capacity (with radiator)
496 L
Cooling Air Flow
21.7 m³/sec @ 12.7 mm H₂O
Exhaust
Exhaust Gas Flow (Standby/Prime)
261 / 242 m³/min
Exhaust Gas Temperature (Standby/Prime)
510 / 499 °C
Max Back Pressure
6.7 kPa
Dimensions & Weight
Open Set (L×W×H)
5811 × 2033 × 2330 mm
Dry Weight (Open)
10 348 kg
Wet Weight (Open)
10 967 kg
Standards & Accessories
Voltage Regulation
±1 % electronic
THD (Total Harmonic Distortion)
≤2 %
Optional Enclosure
Available
