Cummins C1875D5
- Standby:
- 1875 kVA
- Voltage:
- 380‑440 V
- Prime:
- 1700 kVA
- Frequency:
- 50Hz
- Engine:
- Cummins KTA50‑G23
- Amps Per Phase:
- 2700
- Alternator:
- Stamford S7L1D‑E4
- Control Panel:
- Cummins PowerCommand 3.3

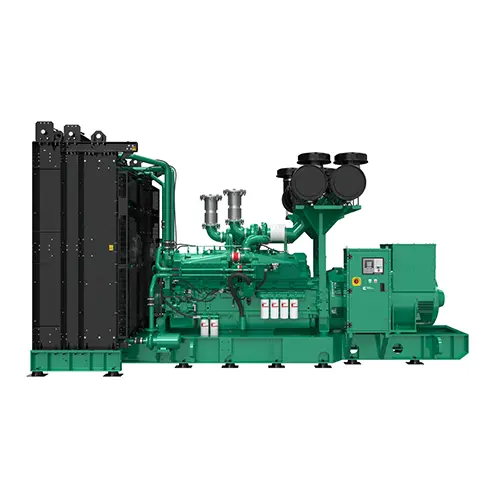

The Cummins C1875D5 is a high-performance open diesel generator delivering 1875 kVA standby and 1700 kVA prime power at 50 Hz. It features the powerful KTA50‑G23 V16 turbocharged and low‑temperature after‑cooled engine, paired with a Stamford S7L1D‑E4 alternator. Equipped with PowerCommand 3.3 control panel for automated operation, diagnostics, and protection.
Engine Specs
Engine Model
KTA50‑G23 (60° V16, turbocharged and low-temperature after‑cooled)
Gross Engine Power (Standby)
1740 kWm
Gross Engine Power (Prime)
1567 kWm
Rated Speed
1 500 rpm
Bore × Stroke
159 × 159 mm
Compression Ratio
14.7 : 1
Piston Speed
7.95 m/s
Lube Oil Capacity
178 L
Overspeed Limit
1 725 rpm
Regenerative Power
116 kW
Governor Type
Electronic
Starting Voltage
24 V DC
Alternator Specs
Model
Stamford S7L1D‑E4
Control Panel Specs
Controller Model
PowerCommand 3.3
Amps per Phase
2700 A
Fuel & Consumption
Standby @¼ load
117 L/hr
Standby @½ load
206 L/hr
Standby @¾ load
291 L/hr
Standby @full load
395 L/hr
Prime @¼ load
109 L/hr
Prime @½ load
194 L/hr
Prime @¾ load
265 L/hr
Prime @full load
360 L/hr
Max Fuel Flow
723 L/hr
Cooling & Air
Combustion Air Flow (Standby)
135 m³/min
Combustion Air Flow (Prime)
130 m³/min
Ambient Design Temperature
40 °C
Fan Load
55 kWm
Coolant Capacity (with radiator)
516 L
Cooling Air Flow
36.14 m³/sec @ 12.7 mm H₂O
Exhaust
Exhaust Gas Flow (Standby)
331 m³/min
Exhaust Gas Flow (Prime)
306 m³/min
Exhaust Gas Temperature (Standby)
508 °C
Exhaust Gas Temperature (Prime)
477 °C
Max Exhaust Back Pressure
6.77 kPa
Dimensions & Weight
Open Set (L×W×H)
6017 × 2590 × 3330 mm
Unit Dry Weight (Open)
12 692 kg
Unit Wet Weight (Open)
13 396 kg
Standards & Accessories
Voltage Regulation
±1 % electronic
THD (Total Harmonic Distortion)
≤2 %
Standard Cooling
Radiator with 40 °C ambient design
Optional Acoustic Enclosure
Available
