Cummins C2000D5‑PB
- Standby:
- 2063 kVA
- Voltage:
- 380‑415 V
- Prime:
- 1875 kVA
- Frequency:
- 50Hz
- Engine:
- Cummins QSK60‑G3
- Amps Per Phase:
- 2970.7
- Alternator:
- Stamford PI734F
- Control Panel:
- Cummins PowerCommand 3.3

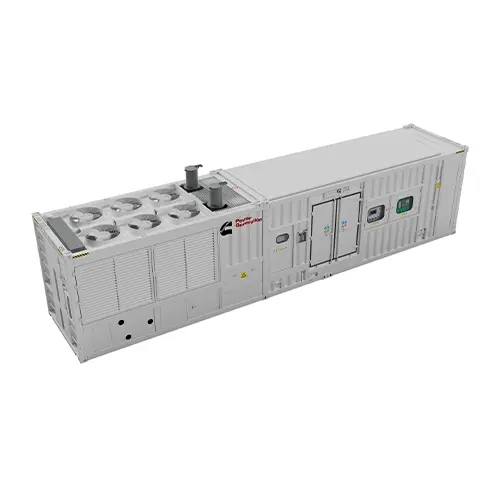

The Cummins C2000D5‑PB is a silent containerised diesel generator delivering 2063 kVA standby and 1875 kVA prime power at 50 Hz. Equipped with a Cummins QSK60‑G3 engine and Stamford PI734F alternator, it includes the advanced PowerCommand 3.3 control panel for full automation, monitoring, and protection.
Engine Specs
Engine Model
QSK60‑G3 (60° V16, turbocharged, low‑temp after‑cooled)
Rated Speed
1 500 rpm
Bore × Stroke
159 × 190 mm
Displacement
60.2 L
Lube Oil Capacity
378 L
Governor Type
Electronic
Starting Voltage
24 V DC
Max Fuel Flow
1 514 L/hr
Alternator Specs
Model
Stamford PI734F
Insulation Class
H
Voltage Regulation
±1 % electronic
THD (Total Harmonic Distortion)
≤2 %
Control Panel Specs
Controller Model
PowerCommand 3.3
Connection Type
Circuit Breaker
Fuel & Consumption
Fuel Usage @100% Load (Standby)
388 L/hr
Cooling & Air
Combustion Air Flow (Standby)
49.2 m³/min (1738 CFM)
Combustion Air Flow (Prime)
71.1 m³/min (2510 CFM)
Fan Load
18 kWe (24 HP)
Coolant Capacity (with radiator)
615 L (162 US gal)
Cooling System Air Flow
28 m³/s (59 964 scfm)
Cooling System Heat Rejection
89.19 MJ/min (84 537 BTU/min)
Total Heat Radiated
17.73 MJ/min (16 800 BTU/min)
Exhaust
Exhaust Gas Flow at Rated Load (Standby)
331.3 m³/min (11 700 CFM)
Exhaust Gas Flow at Rated Load (Prime)
306.2 m³/min (10 815 CFM)
Exhaust Temperature (Standby)
440 °C (824 °F)
Exhaust Temperature (Prime)
415 °C (779 °F)
Heat to Exhaust
72 000 BTU/min (1 265 kWm)
Maximum Exhaust Back Pressure
6.772 kPa (27.2 in H₂O)
Dimensions & Weight
Container Dimensions (L×W×H)
12,192 × 2,438 × 2,896 mm
Dry Weight
14,880 kg
Standards & Accessories
Voltage Regulation
±1 % electronic
THD (Total Harmonic Distortion)
≤2 %
Gov. Type
Electronic
ATC & Battery Charger
Optional
