Cummins C2000D5EB
- Standby:
- 2000 kVA
- Voltage:
- 380‑440 V
- Prime:
- 1875 kVA
- Frequency:
- 50Hz
- Engine:
- Cummins QSK50‑G16
- Amps Per Phase:
- 2880
- Alternator:
- Stamford S7L1D‑G4
- Control Panel:
- Cummins PowerCommand 3.3

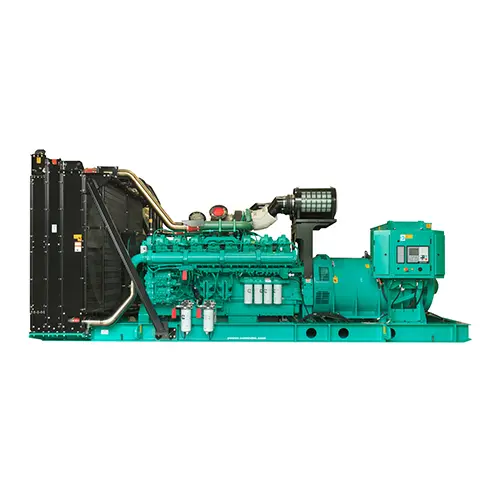

The Cummins C2000D5EB delivers robust 2000 kVA standby and 1875 kVA prime power at 50 Hz. It features the QSK50‑G16 V16 turbocharged and low‑temperature after‑cooled engine with a Stamford S7L1D‑G4 alternator, managed by PowerCommand 3.3 for complete automation and monitoring.
Engine Specs
Engine Model
QSK50‑G16 (60° V16, turbocharged and low‑temperature after‑cooled)
Configuration
4‑Cycle, 60° Vee, 16‑Cylinder
Displacement
49.8 L
Rated Speed
1 500 rpm
Bore × Stroke
159 × 159 mm
Max Fuel Flow
812 L/hr
Starting Voltage
24 V DC
Alternator Specs
Model
Stamford S7L1D‑G4
Control Panel Specs
Controller Model
PowerCommand 3.3
Amps per Phase
2880 A
Fuel & Consumption
Standby @¼ / ½ / ¾ / Full Load
134 / 220 / 308 / 361 L/hr
Cooling & Air
Combustion Air Flow
52.4 / 93.2 m³/min (Standby / Prime)
Radiator Coolant Capacity
276 L
Fan Load
37 kWm
Exhaust
Exhaust Gas Flow at Rated Load
— m³/min (not specified)
Max Exhaust Back Pressure
10.1 kPa
Dimensions & Weight
Dimensions (L×W×H)
5864 × 2248 × 2521 mm
Dry Weight
11,504 kg
Standards & Accessories
Emission Compliance
EPA Tier 2 / China NRMM III
Battery Charger
Included
Water Heater
Included
