Cummins C220D5E
- Standby:
- 220 kVA
- Voltage:
- 380‑415 V
- Prime:
- 200 kVA
- Frequency:
- 50Hz
- Engine:
- Cummins QSB7‑G5
- Amps Per Phase:
- 318
- Alternator:
- Stamford UCI274H
- Control Panel:
- Cummins PowerCommand 1.2
The Cummins C220D5E is a certified Stage IIIa diesel generator offering 220 kVA (176 kW) standby / 200 kVA (160 kW) prime output at 50Hz. Powered by the Cummins QSB7‑G5 inline‑6 engine (turbocharged and charge‑air cooled) and Stamford UCI274H alternator, it delivers precise ± 1 % voltage regulation under load. The PowerCommand 1.2 control panel provides automated start/stop, diagnostics, protection, and full metering.

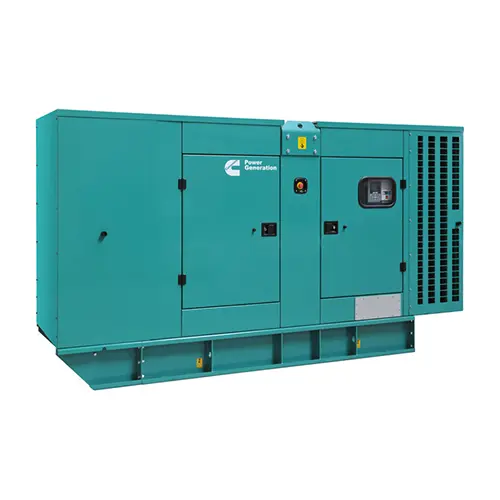

Designed for robust industrial and commercial standby applications, it comes in a sound‑attenuated and weather‑protective canopy compliant with CE/UKCA. Optional features include extended fuel tanks, coolant heater, battery charger, and ATS integration.
Engine Specs
Engine Model
QSB7‑G5 (inline‑6, turbocharged & charge‑air cooled)
Rated Speed
1500 rpm
Bore × Stroke
107 × 124 mm
Compression Ratio
17.2 : 1
Lube Oil Capacity
≈ 19 L
Governor Type
Electronic
Alternator Specs
Model
Stamford UCI274H
Insulation Class
H
Voltage Regulation
± 1 %
Frequency Regulation
Droop control (50Hz)
Control Panel Specs
Controller Model
PowerCommand 1.2
Display
LED + LCD metering
Functions
Auto/manual start, AMF, diagnostics, metering
Starting Voltage
12 V DC
Fuel & Consumption
Fuel Tank Capacity
≈ 464 L
Fuel Consumption @ Full Load
≈ 48.8 L/hr (standby), ≈ 45.6 L/hr (prime)
Cooling & Air
Coolant Capacity
≈ 30.2 L
Combustion Air Flow
≈ 12.72 m³/min (standby), ≈ 12.30 m³/min (prime)
Ambient Rating
50 °C
Exhaust
Exhaust Temp
≈ 561 °C (standby), ≈ 544 °C (prime)
Exhaust Flow
≈ 35.8 m³/min (standby), ≈ 34.1 m³/min (prime)
Max Back Pressure
10.2 kPa
Dimensions & Weight
Open Set (L×W×H)
2656 × 1130 × 1822 mm
Enclosed Set (L×W×H)
4209 × 1130 × 2227 mm
Dry Weight (Open)
2,070 kg
Dry Weight (Enclosed)
2,984 kg
Standards & Accessories
Certifications
Stage IIIA / CE / UKCA
Optional Features
Battery charger, coolant heater, extended tank, ATS
Warranty
2 years or 500 h standby / 1 year unlimited prime
