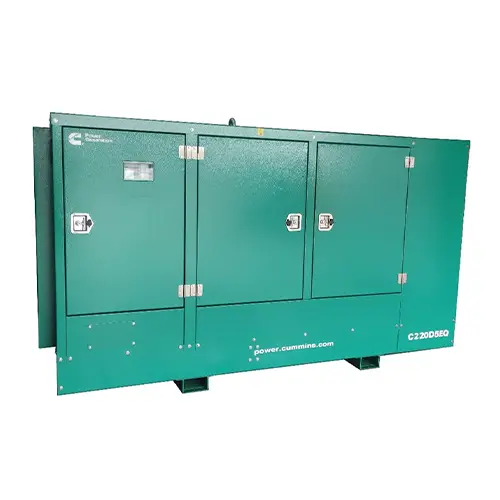

Cummins C220D5EQ
- Standby:
- 220 kVA
- Voltage:
- 400 V
- Prime:
- 200 kVA
- Frequency:
- 50Hz
- Engine:
- Cummins QSB7‑G5
- Amps Per Phase:
- 316.8
- Alternator:
- Stamford UC274H
- Control Panel:
- Cummins PowerCommand 1.2
The Cummins C220D5EQ from the Q‑Range delivers 220 kVA (176 kW) standby and 200 kVA (160 kW) prime power at 50Hz. It is powered by the Stage IIIa compliant Cummins QSB7‑G5 turbocharged & charge‑air cooled engine running at 1500 rpm, coupled with a Stamford UC274H alternator offering ±1 % voltage regulation.
Controlled via the PowerCommand 1.2 microprocessor panel with automatic start/stop, diagnostics, fault protection, and full metering. The weather‑protective sound‑attenuated canopy is CE/UKCA certified, with options such as extended fuel tanks, battery charger, coolant heater, and ATS.
Engine Specs
Engine Model
QSB7‑G5 (inline‑6, turbocharged & charge‑air cooled)
Rated Speed
1500 rpm
Bore × Stroke
107 × 124 mm
Compression Ratio
17.2 : 1
Lube Oil Capacity
≈ 19 L
Governor Type
Electronic
Alternator Specs
Model
Stamford UC274H
Insulation Class
H
Voltage Regulation
± 1 %
Frequency Regulation
Isochronous / Droop control (50Hz)
Control Panel Specs
Controller Model
PowerCommand 1.2
Display
LED + LCD metering
Functions
Auto/manual start, AMF, diagnostics, fault protection, metering
Starting Voltage
12 V DC
Fuel & Consumption
Fuel Tank Capacity
400 L (base)
Fuel Consumption @ Full Load
≈ 45.6 L/hr
Cooling & Air
Coolant Capacity
≈ 30 L
Combustion Air Flow
≈ 12.7 m³/min (standby), ≈ 12.3 m³/min (prime)
Ambient Rating
50 °C
Exhaust
Exhaust Temp
≈ 561 °C (standby), ≈ 544 °C (prime)
Exhaust Flow
≈ 35.8 m³/min (standby), ≈ 34.1 m³/min (prime)
Max Back Pressure
≈ 10.2 kPa
Dimensions & Weight
Enclosed Set (L×W×H)
3200 × 1180 × 1950 mm
Dry Weight (Enclosed)
≈ 2,984 kg
Standards & Accessories
Certifications
Stage IIIA / CE / UKCA
Optional Features
Battery charger, coolant heater, extended tank, ATS
Warranty
2 years or 500 h standby / 1 year unlimited prime
