Cummins C2250D5
- Standby:
- 2250 kVA
- Voltage:
- 400‑440 V
- Prime:
- 2000 kVA
- Frequency:
- 50Hz
- Engine:
- Cummins QSK60‑G4
- Amps Per Phase:
- 3248
- Alternator:
- Stamford PI734G
- Control Panel:
- Cummins PowerCommand 3.3

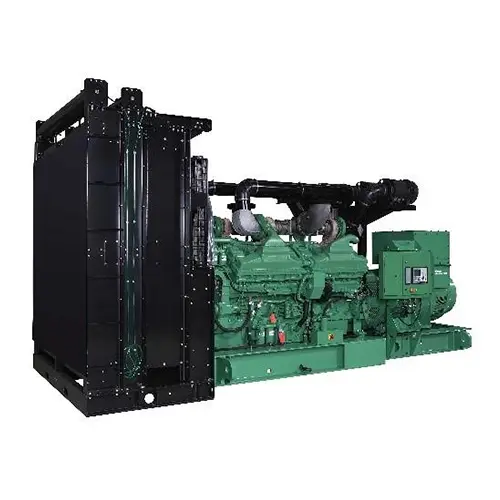

The Cummins C2250D5 is a high-output open diesel generator offering 2250 kVA standby and 2000 kVA prime power at 50 Hz. It’s powered by a Cummins QSK60‑G4 V16 engine and Stamford PI734G alternator, controlled by the robust PowerCommand 3.3 panel.
Engine Specs
Engine Model
QSK60‑G4 (60° V16, turbocharged, low‑temp after‑cooled)
Gross Engine Power (Standby)
1915 kWm
Gross Engine Power (Prime)
1730 kWm
Rated Speed
1 500 rpm
Bore × Stroke
159 × 190 mm
Piston Speed
9.5 m/s
Compression Ratio
14.5 : 1
Lube Oil Capacity
378 L
Overspeed Limit
1 725 ± 50 rpm
Regenerative Power
146 kW
Governor Type
Electronic
Starting Voltage
24 V DC
Alternator Specs
Model
Stamford PI734G
Connection
Wye, 3‑Phase
Insulation/Temp Rise
H class, 150/125 °C S/P
Control Panel Specs
Controller Model
PowerCommand 3.3
Fuel & Consumption
Standby @¼/½/¾/Full Load
138 / 229 / 328 / 437 L/hr
Prime @¼/½/¾/Full Load
114 / 200 / 291 / 394 L/hr
Max Fuel Flow
1893 L/hr
Cooling & Air
Combustion Air Flow (Standby/Prime)
144 / 136 m³/min
Exhaust
Exhaust Gas Flow (Standby/Prime)
337 / 311 m³/min
Exhaust Temperature (Standby/Prime)
450 / 430 °C
Max Exhaust Back Pressure
6.7 kPa
Dimensions & Weight
Dimensions (Open Set)
6175 × 2286 × 2537 mm
Dry Weight
15 095 kg
Standards & Accessories
Voltage Regulation
±1 % electronic
THD
≤2 %
Options
Battery Charger, Water Heater
