Cummins C33D5
- Standby:
- 33 kVA
- Voltage:
- 380‑415 V
- Prime:
- 30 kVA
- Frequency:
- 50Hz
- Engine:
- Cummins X3.3‑G1
- Amps Per Phase:
- 47.5
- Alternator:
- Stamford S0L2‑P1
- Control Panel:
- Cummins PowerCommand 1.1

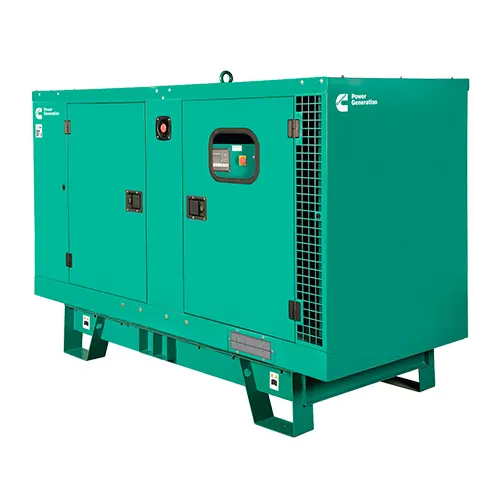

The Cummins C33D5 is a robust 33 kVA silent diesel generator designed for stationary standby and prime power applications.
It is powered by the Cummins X3.3‑G1 naturally aspirated in‑line 4‑cylinder engine operating at 1 500 rpm. The set provides 30 kVA (24 kW) prime and 33 kVA (26.4 kW) standby outputs. With the Stamford S0L2‑P1 alternator, voltage regulation is within ± 1%, and frequency is managed via droop control. The PowerCommand 1.1 control system offers automatic start/stop, full data display, metering, fault diagnostics, and AMF functionality.
Available in silent or weather‑protected enclosures, base fuel tank capacity is 175 L. Noise levels are approximately 77 dB(A) at 1 m. Certified to CE/ISO standards, the C33D5 includes optional features such as coolant heaters, battery chargers, and extended fuel tanks.
