Cummins C700D5
- Standby:
- 706 kVA
- Voltage:
- 380‑440 V
- Prime:
- 640 kVA
- Frequency:
- 50Hz
- Engine:
- Cummins VTA28‑G5
- Amps Per Phase:
- 1016
- Alternator:
- Stamford HC5F
- Control Panel:
- Cummins PowerCommand 3.3

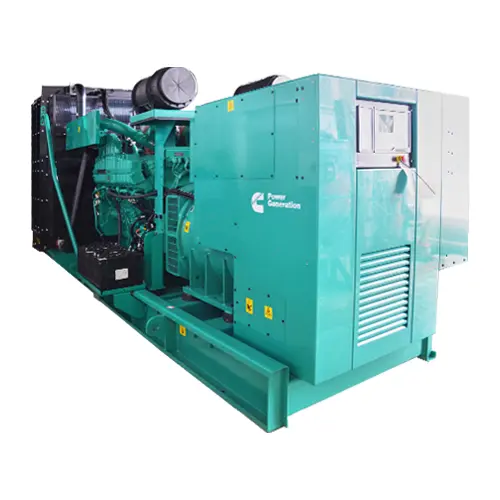

The Cummins C700D5 is a rugged open diesel generator delivering 706 kVA standby and 640 kVA prime power at 50 Hz. Powered by the turbocharged, after‑cooled VTA28‑G5 engine and a Stamford HC5F alternator. Equipped with the PowerCommand 3.3 control panel for fully automatic start/stop, diagnostics, protection, and monitoring.
Engine Specs
Engine Model
VTA28‑G5 (12‑Cylinder, Turbocharged/After‑cooled)
Rated Speed
1 500 rpm
Gross Engine Power (Standby)
612 kWm
Gross Engine Power (Prime)
560 kWm
Lube Oil Capacity
83 L
Overspeed Limit
1 800 rpm ±50
Starting Voltage
24 V DC
Emission Level
Unregulated
Alternator Specs
Model
Stamford HC5F
Generator Specs
Standby Power
706 kVA / 565 kW
Prime Power
640 kVA / 512 kW
Voltage
380‑440 V
Frequency
50 Hz
Amps Per Phase
1016 A
Control Panel
Cummins PowerCommand 3.3
Fuel & Cooling
Max Fuel Flow
337 L/hr
